Description

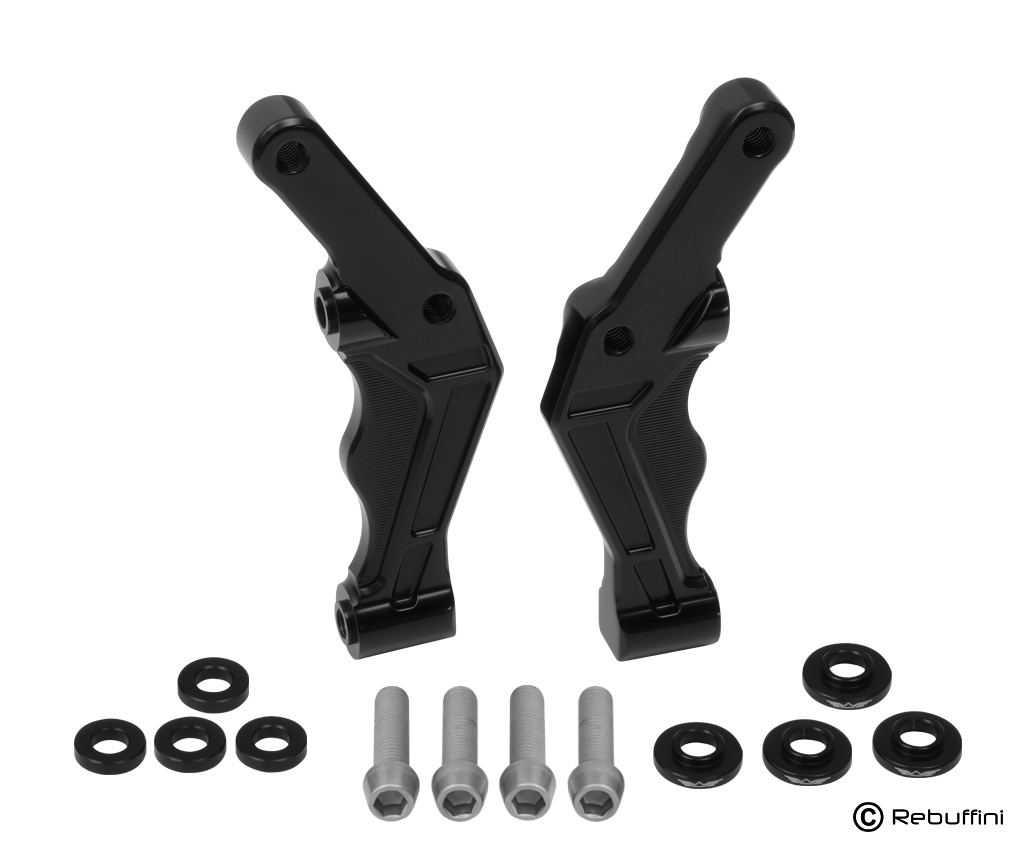

Bolt-on radial caliper mounts dedicated to those who want to provide
a radial performing brake caliper 108mm offset 22.5mm on all H-D models from 2000 onwards (excluding Springer)
without any modification.
Machined from solid, they ensure maximum rigidity and safety.
Like all Rebuffini products, they have undergone FEM analysis and tests on bench and / or road.
Available in 2 versions:
– for discs ø292mm / ø300mm (11.5 “/11.8”)
– for discs ø320mm (12.6 “)
Bolts and spacers included, excluding the radial fixing caliper screws, to be ordered separately.
Available in black anodized aluminum or polished aluminum.
Note: if you already have the kit for ø292mm / ø300mm (11.5 “/ 11.8”) disc and want to install
ø320mm (12.6 “) disc, it will be sufficient to buy the higher spacers (H14) and the longer screws (M10x70mm).
See in the under section.
